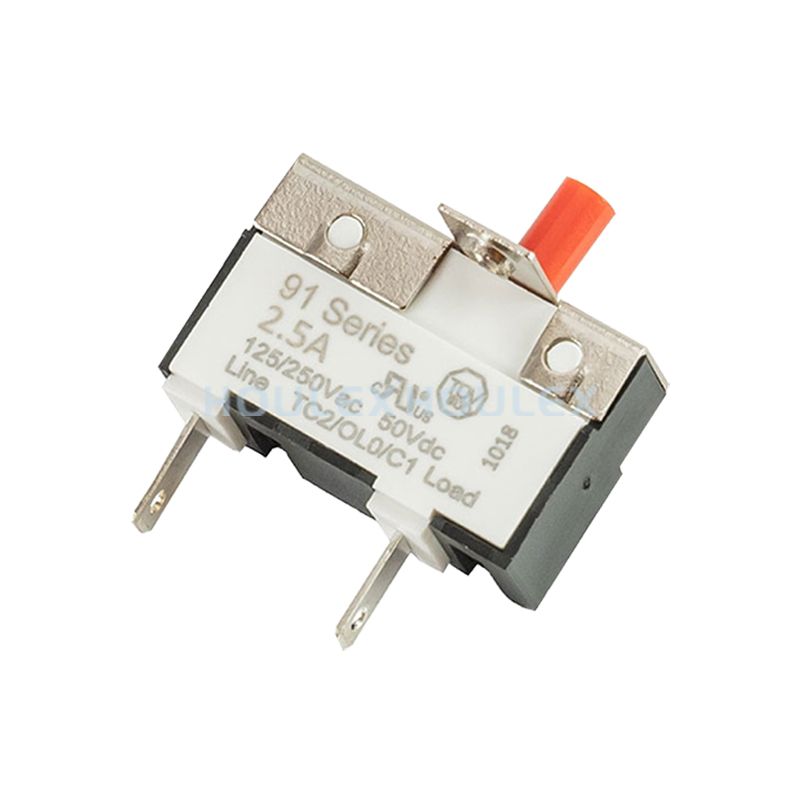

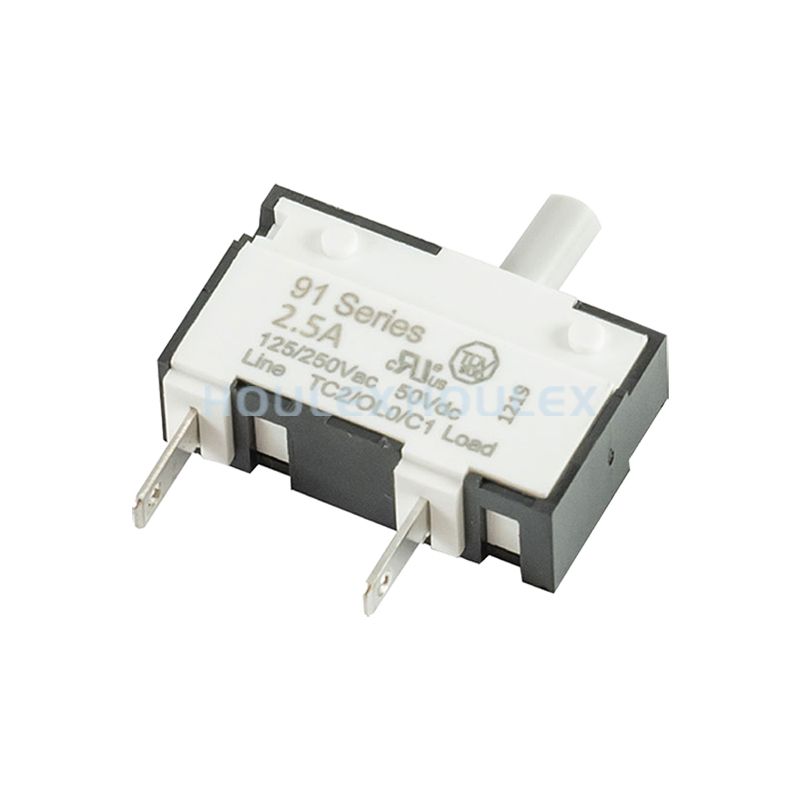

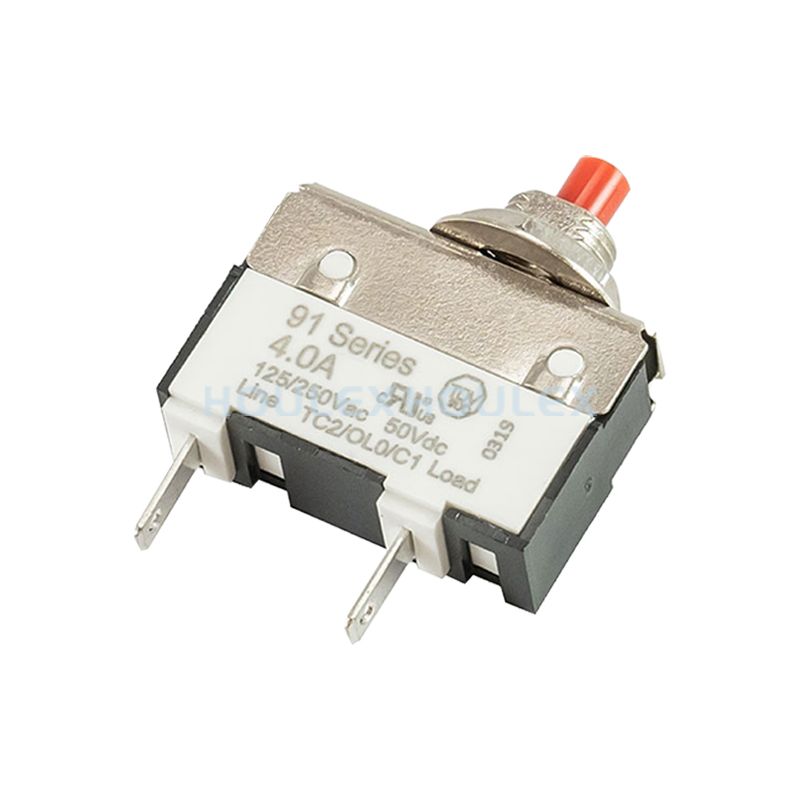

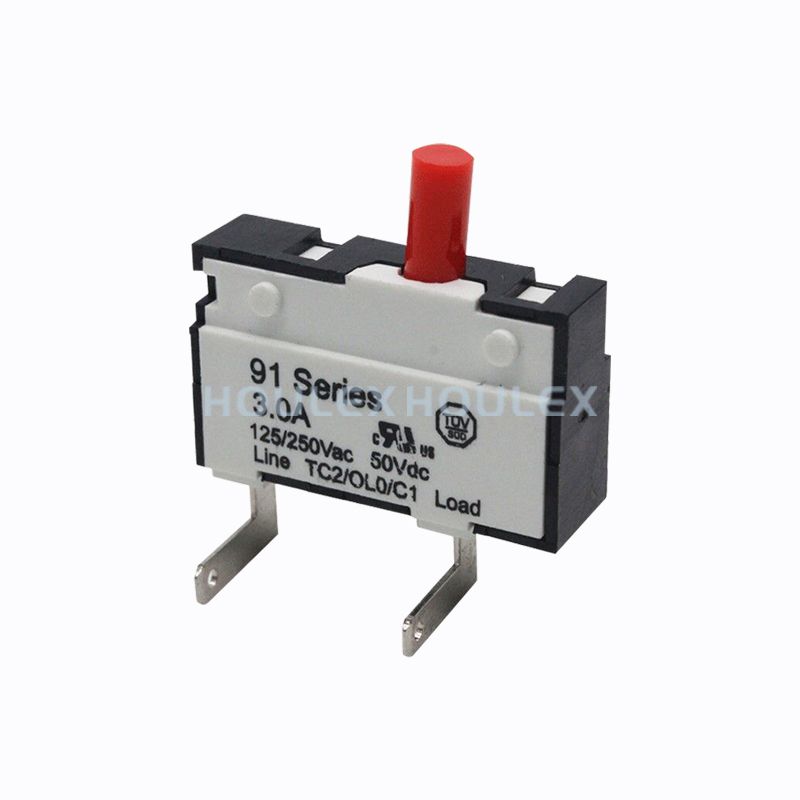

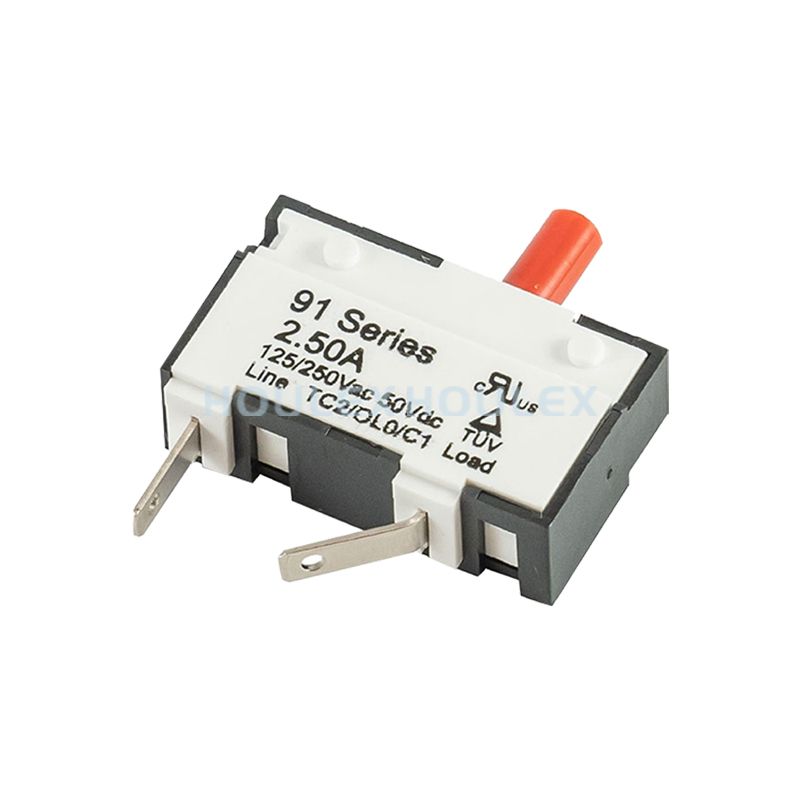

91-series

91-series

额定电流(rating):0.5A-10A

输入电压(Input Power):125VAC/250VAC/50VDC 50-60Hz

耐电压强度(Withstand voltage strength):1500VAC/1min,漏电电流≤0.5mA

(1500VAC/min,the leaked current is less than≤0.5mA)

绝缘电阻(Insulation Resistance):500VDC 1Min≥100MΩ

额定短路能力(Rated short-circuit capacity):125VAC/1000A,250VAC/1000A

额定通断能力(Rated breaking capacity):1.5倍额定电流

1.5 times rated current)

复位方式(Reset):手动复位(Manual Push Reset)
