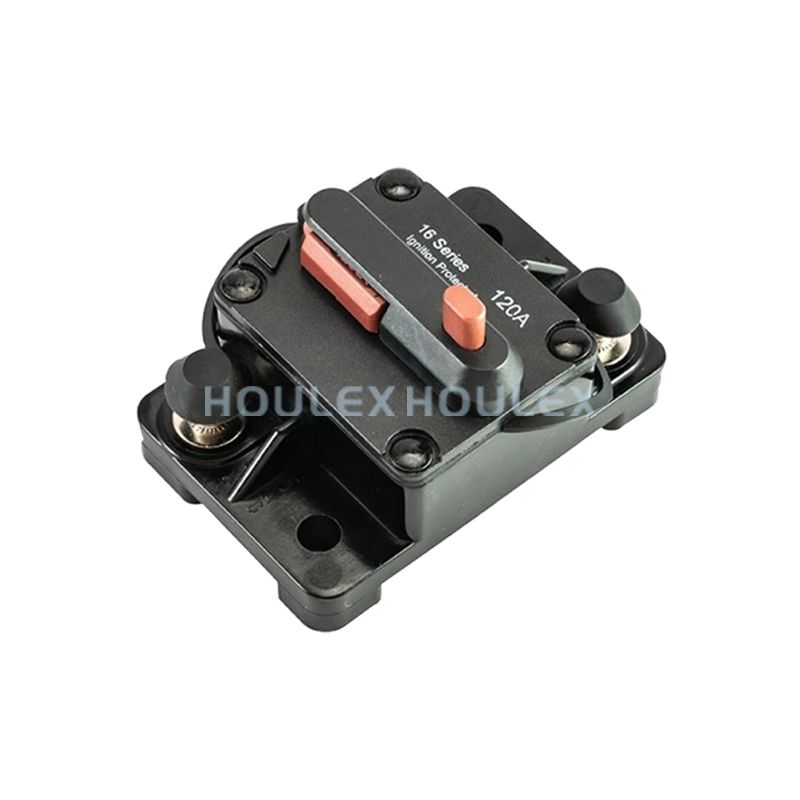

产品名称: 16-8F

产品型号: 25A-300A

额定电流(Current rating range)：25A-300A

额定电压(Input voltage rating )：12/24/32/48VDC

限制短路电流(Interrupting capacity): 2000A/32VDC Type I

2000A/14VDC Type II

1500A/48VDC Type III

介电强度(Dielectric Strength):>1500VAC/min

绝缘电阻(Insulation Resistance):>100MOHM(DC 500V)

防护等级(Degree of protection):IP66

复位时间(Reset-Time):<60sec

工作环境温度（Operating Temperature Rating):-30℃-80℃

储存温度(Storage Temperatur Rating):-30℃-140℃
