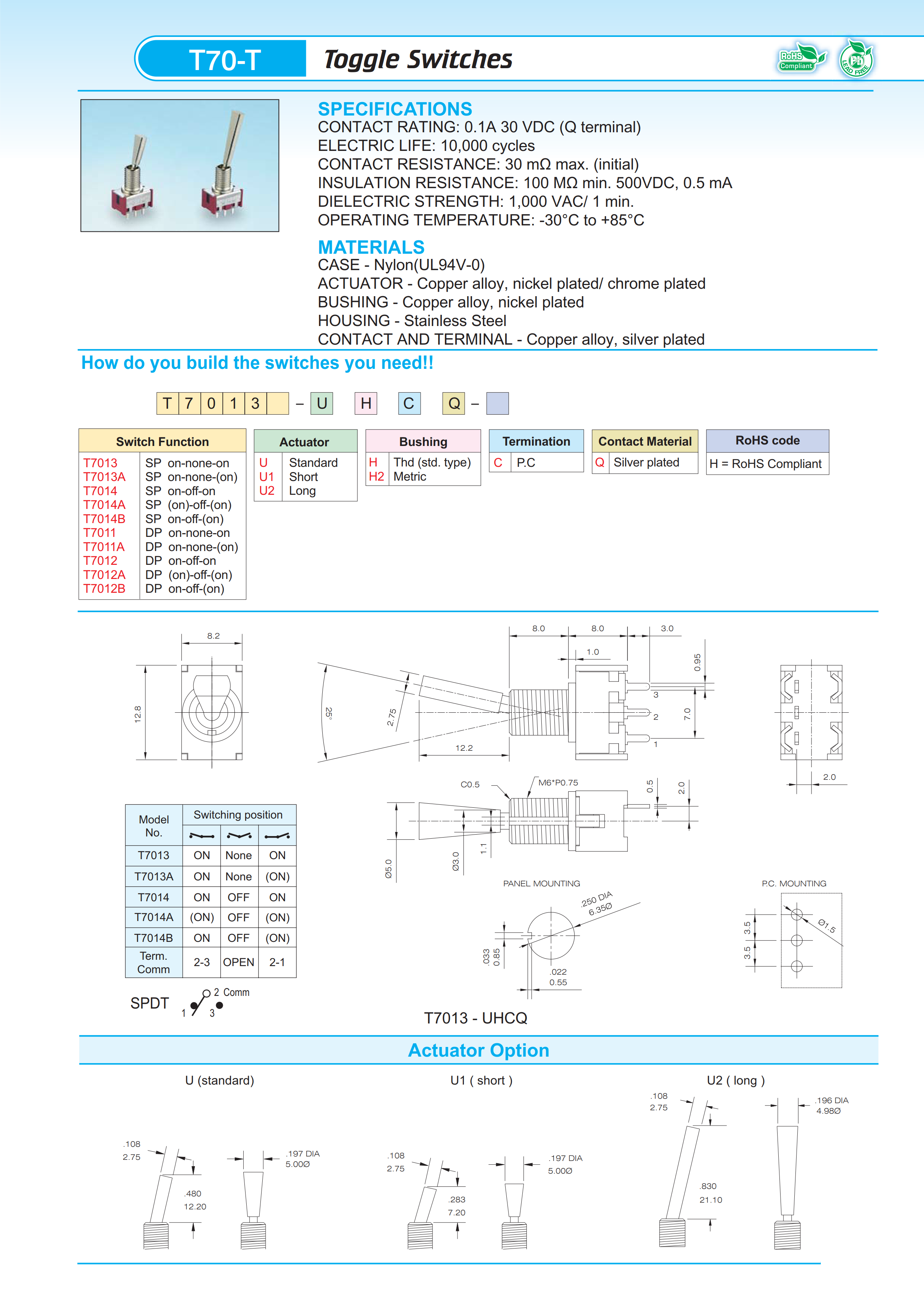

Features

For remote controller

Multi-positions

Low voltage, low current

Specification

Contact Rating: 0.1 30 VDC (Silver plated)

Electrical Life: 10,000 cycles

Contact Resistance: 30 mΩ max. initial

Insulation Resistance: 100 MΩ min. 500VDC, 0.5mA

Dielectric Strength: 1,000 VAC for 1 min.

Operating Temperature: -30°C to 85°C

Materials

BODY: Nylon (UL94V-0)

ACTUATOR: Copper alloy, nickel plated /chrome plated

BUSHING: Copper alloy, nickel plated

HOUSING: Stainless Steel

CENTER CONTACTS & ALL TERMINALS: Copper alloy, silver plated
