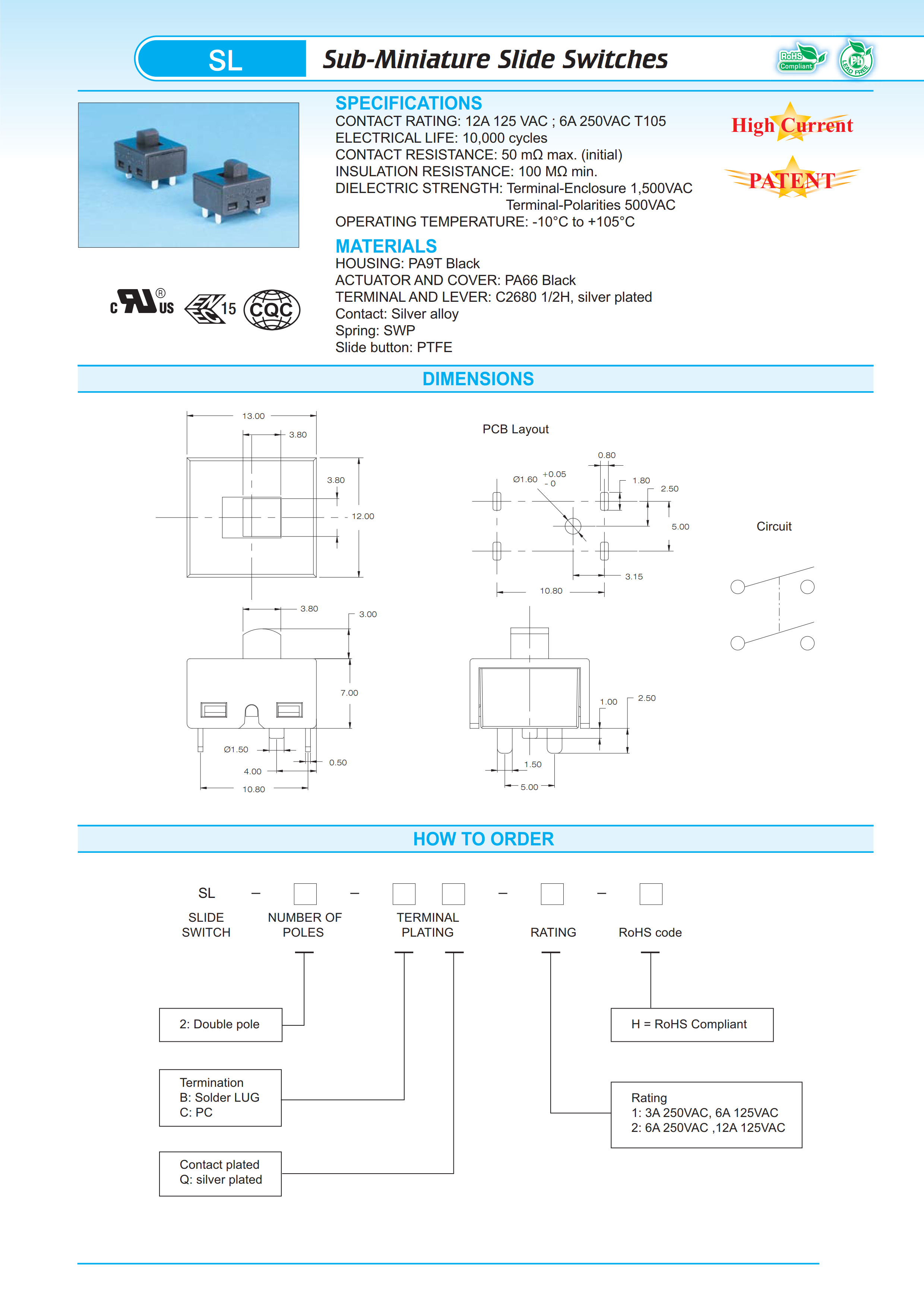

Features

High current in compact size

Double pole

Specification

Contact Rating: 12A 125 VAC ; 6A 250/VAC T105

Electrical Life: 10,000 cycles

Contact Resistance: 50 mΩ max. (initial)

Insulation Resistance: 100 MΩ min.

Dielectric Strength: Terminal-Enclosure 1,500VAC / Terminal-Polarities 500VAC

Operating Temperature: -10°C to 105°C

Materials

HOUSING: PA9T Black

ACTUATOR & COVER: PA66 Black

TERMINAL & LEVER: C2680 1/2H, silver plated

Contact: Silver alloy

Spring: SWP

Slide button: PTFE
